Home » Machine Models » Factory Cat Model 34 » Drive System

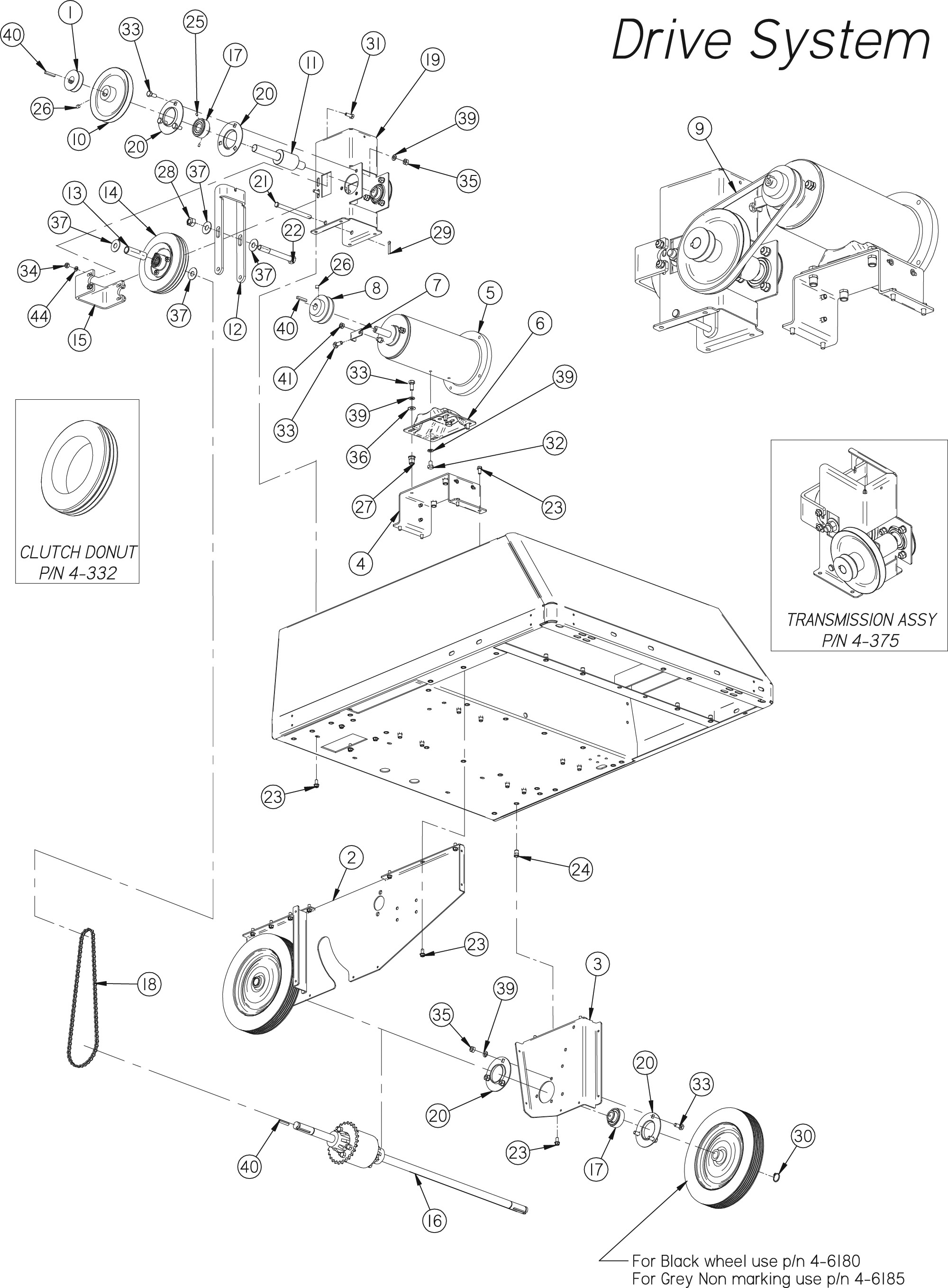

Factory Cat Model 34 - Drive System

×
GridList38 items
    Product Name   Item #   Price   Select Qty
Factory Cat OEM Pulley, 2.1 Od (4L) W/ Two Set Screws   #1 - Factory Cat OEM Pulley, 2.1 Od (4L) W/ Two Set Screws FC349-3200  $33.90
    #2 - Factory Cat OEM Panel,RH Inner FC4-113  $139.40
    #3 - Factory Cat OEM Panel,LH Rear FC4-120  $105.50
    #4 - Factory Cat OEM Bracket,Motor Support FC4-125  $56.90
    #5 - Factory Cat OEM Main Motor FC4-201  $604.50
    #6 - Factory Cat OEM Bracket,Main Motor FC4-201B  $47.20
    #7 - Factory Cat OEM Clip,Terminal FC4-210  $12.40
Factory Cat OEM Main Motor Drive Pulley   #8 - Factory Cat OEM Main Motor Drive Pulley FC4-301  $44.50
Factory Cat OEM Main Motor Drive Belt (New Style)   #9 - Factory Cat OEM Main Motor Drive Belt (New Style) FC4-311  $28.00
    #10 - Factory Cat OEM Pulley,3/4"Borex5-1/2"OD FC4-312  $50.50
    #11 - Factory Cat OEM Rear Wheel Drive Capstan FC4-313  $71.00
    #12 - Factory Cat OEM Clutch Mounting Bracket & Pivot Pin FC4-314  $103.30
    #13 - Factory Cat OEM Clutch Wheel Pivot Bolt W/Slee Ve FC4-321  $33.00
    #14 - Factory Cat OEM Clutch Wheel & Sprocket Unit FC4-330  $228.70
    #15 - Factory Cat OEM Shoe,Brake FC4-340  $32.50
    #16 - Factory Cat OEM Differential Axle FC4-350  $185.80
    #17 - Factory Cat OEM Bearing, 1/4-28 Set Screws FC4-352  $26.40
    #18 - Factory Cat OEM Drive Chain W/ Master Link FC4-354  $24.70
    #21 - Factory Cat OEM Pin,Clevis,3/8"x4-1/2" Zinc FCH-00135  $5.90
    #22 - Factory Cat OEM Screw,Hex Cap,1/2-13x4-1/4" Grade 8,Yellow Zinc FCH-15220  $5.40
    #23 - Factory Cat OEM Screw,Hex Cap,1/4-20x1/2" Serrated Washer Head FCH-19901  $5.70
    #24 - Factory Cat OEM Nut,Hex Crimp,1/4-20,Standard FCH-250HCN  $4.25
    #25 - Factory Cat OEM Screw,Set,#8-32x1/4" Cupped FCH-25153  $4.25
    #27 - Factory Cat OEM Nut,Hex Crimp,5/16-18,Standard FCH-312HCN  $4.25
    #28 - Factory Cat OEM Nut,Nylok,1/2-20,Zinc FCH-37130  $4.25
    #29 - Factory Cat OEM Pin,Cotter,1/8"Wirex1"L Zinc FCH-65076  $4.25
    #30 - Factory Cat OEM Ring,Retaining,3/4" External FCH-68015  $4.25
    #31 - Factory Cat OEM Screw,Hex Cap,1/4-20x3/4" Stainless FCH-70003  $4.25
    #32 - Factory Cat OEM Screw,Hex Cap,5/16-18x1/2" Stainless FCH-70051  $4.25
    #33 - Factory Cat OEM Screw,Hex Cap,5/16-18x3/4" Stainless FCH-70053  $4.25
Factory Cat OEM 1/4-20 S/S Nut   #34 - Factory Cat OEM 1/4-20 S/S Nut FCH-70710  $4.25
    #35 - Factory Cat OEM Comes W/7-783 FCH-70711  $4.25
    #36 - Factory Cat OEM Flat Washer, 5/16" X 3/4" FCH-71015  $4.25
    #37 - Factory Cat OEM Washer,1/2"IDx1-1/4"OD Stainless FCH-71021  $4.25
    #38 - Factory Cat OEM Lock Washer , 1/4" FCH-71063  $4.25
    #39 - Factory Cat OEM Lock Washer, 5/16", Stainless FCH-71065  $4.25
    #40 - Factory Cat OEM Machine Key, 3/16 X 1-1/4" FCH-K14320  $4.25
    #41 - Factory Cat OEM Jam Nylock, 5/16-18 , Stainless FCH-NJ05C  $4.25
38 items
